300HP Hydraulic Steering System For Outboard With Helm Pump Cylinder And Tubes ZA0350
Categories
The hydraulic Steering System For Outboard is one of the main products of the Ollwinner Industry with quality, factory direct sales, and factory supply. Our company is a professional supplier and manufacturer in China, with various products on sale and cheap prices.
High Performance Front Mount Cylinder
-
Swiveling fittings for easy installation
-
High resistance stainless steel connection bolt
-
For single engine single cylinder, up to 300 hp max
-
For dual engine single cylinder, up to 600 hp max
-
For dual engine dual cylinder, up to 600 hp max

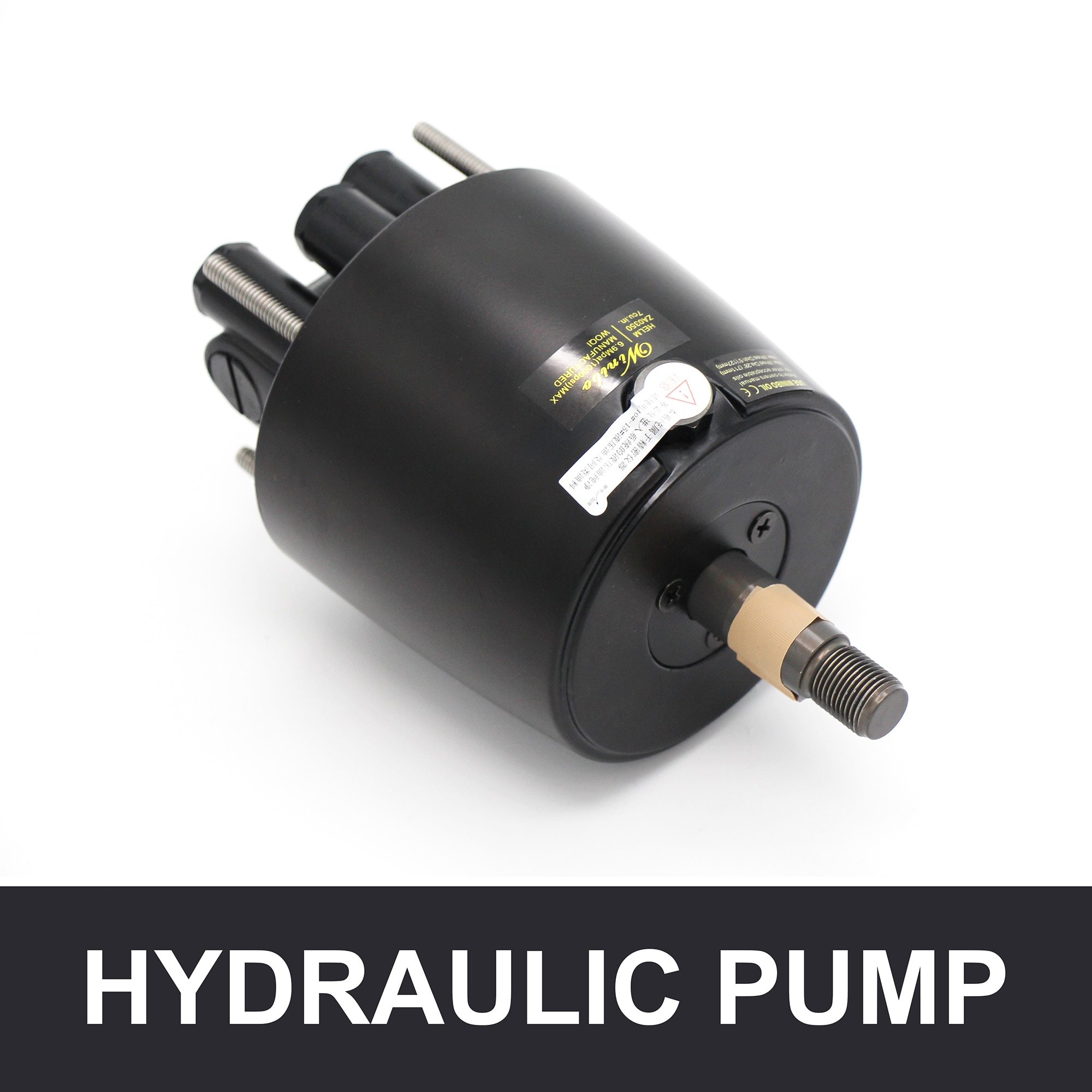

Compact Front Mount Helm Pumps
-
Integral relief valve for over-pressure protection
-
Built-in lock valve for positive rudder lock
-
Displacement/Revolution 27 cc
-
3/4" tapered stainless shaft
-
Compact design
-
Anodized cover
-
ORB ports
-
7 plunger
Package Content
-
1 Helm Pump
-
1 Cylinder
-
2 Tube Kit
-
1 Hardware Bag
Cylinder Specification
|
Volume |
141.8cc |
|
Output Force |
468 kg - 1032 lbs |
|
Cylinder I.D |
35 mm - 1.38" |
|
Piston I.D |
20 mm - 0.79" |
|
Stroke |
219 mm - 8.62" |
|

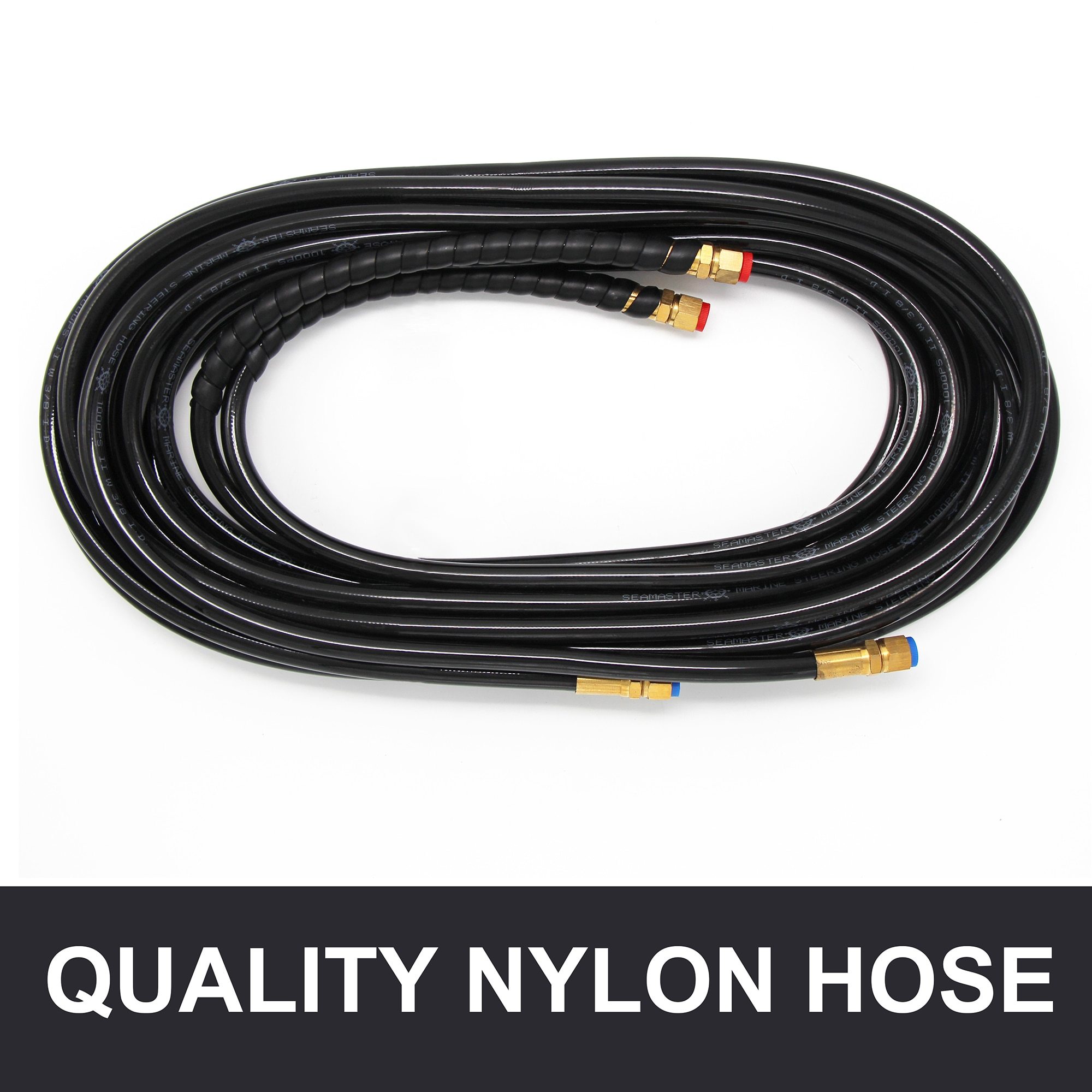

High Pressure Hose |
3/8" (9.5mm) Fittings |
Product Information
|
Applicable Horsepower |
Up To 30HP |
|
Item Package L x W x H |
23.6 x 11.25 x 7.16 inches |
|
Item Weight |
9.7 Kilograms |
|
Material |
Stainless Steel＆Aluminum alloy |
|
Brand Name |
Winibo |
|
Item Number |
ZA0350 |
