How to Upgrade Your Old Boat with Marine Stern Drive Hydraulic Steering

Table of Contents

• Understanding Marine Stern Drive Hydraulic Steering


• Benefits of Upgrading to Hydraulic Steering


• Key Components of Hydraulic Steering Systems


• Preparation for Upgrading Your Boat Steering


• Step-by-Step Guide to Install Hydraulic Steering


• Common Challenges and Solutions


• Maintenance Tips for Hydraulic Steering Systems


• Final Thoughts on Boat Upgrades


• FAQs About Hydraulic Steering Systems

Understanding Marine Stern Drive Hydraulic Steering

Marine stern drive hydraulic steering systems are designed for boats that utilize a stern drive propulsion system. Unlike traditional mechanical steering, hydraulic steering provides smoother operation and improved maneuverability, especially in larger vessels. This system utilizes hydraulic fluid to transmit force from the steering wheel to the drive unit, allowing for greater precision and less physical effort to turn the boat.

Benefits of Upgrading to Hydraulic Steering

Upgrading to hydraulic steering confers several advantages that enhance both safety and enjoyment on the water:

• Improved Maneuverability: Hydraulic steering allows for easier handling, especially in tight spaces and during rough conditions.


• Reduced Effort: Steering a boat becomes effortless, which is particularly beneficial for larger vessels or those with heavy loads.


• Enhanced Response: The system offers quicker response times, allowing for more precise navigation.


• Increased Stability: Hydraulic systems help maintain better control over the boat, leading to a more stable ride.


• Less Maintenance: Compared to mechanical systems, hydraulic steering generally requires less frequent maintenance and fewer adjustments.

Key Components of Hydraulic Steering Systems

Familiarizing yourself with the components of a hydraulic steering system is crucial for a successful upgrade. The key components include:

• Hydraulic Steering Pump: This pump pressurizes hydraulic fluid, enabling steering movement.


• Hydraulic Cylinder: This component converts hydraulic pressure into mechanical force to turn the drive unit.


• Steering Wheel: The part of the system that you physically interact with to control steering direction.


• Hydraulic Lines: These tubes transport hydraulic fluid between the pump and the cylinder.


• Reservoir: Holds the hydraulic fluid, keeping the system supplied for consistent performance.

Preparation for Upgrading Your Boat Steering

Before diving into the installation process, take the time to prepare adequately. Here are essential steps to follow:

• Assess Your Current System: Understand the existing steering setup and identify any compatibility issues.


• Gather Necessary Tools: Ensure you have all required tools, including wrenches, pliers, screwdrivers, and a hydraulic fluid reservoir.


• Choose the Right Hydraulic System: Research and select a hydraulic steering kit that fits your boat's specifications.


• Safety First: Wear appropriate safety gear and ensure the boat is on a stable surface before beginning the upgrade.

Step-by-Step Guide to Install Hydraulic Steering

Now, let’s break down the installation process into manageable steps.

Step 1: Remove the Old Steering System

Begin by disconnecting and removing any existing steering components. This may involve:

• Detaching the steering wheel.


• Disconnecting the steering cables.


• Removing the old helm unit.

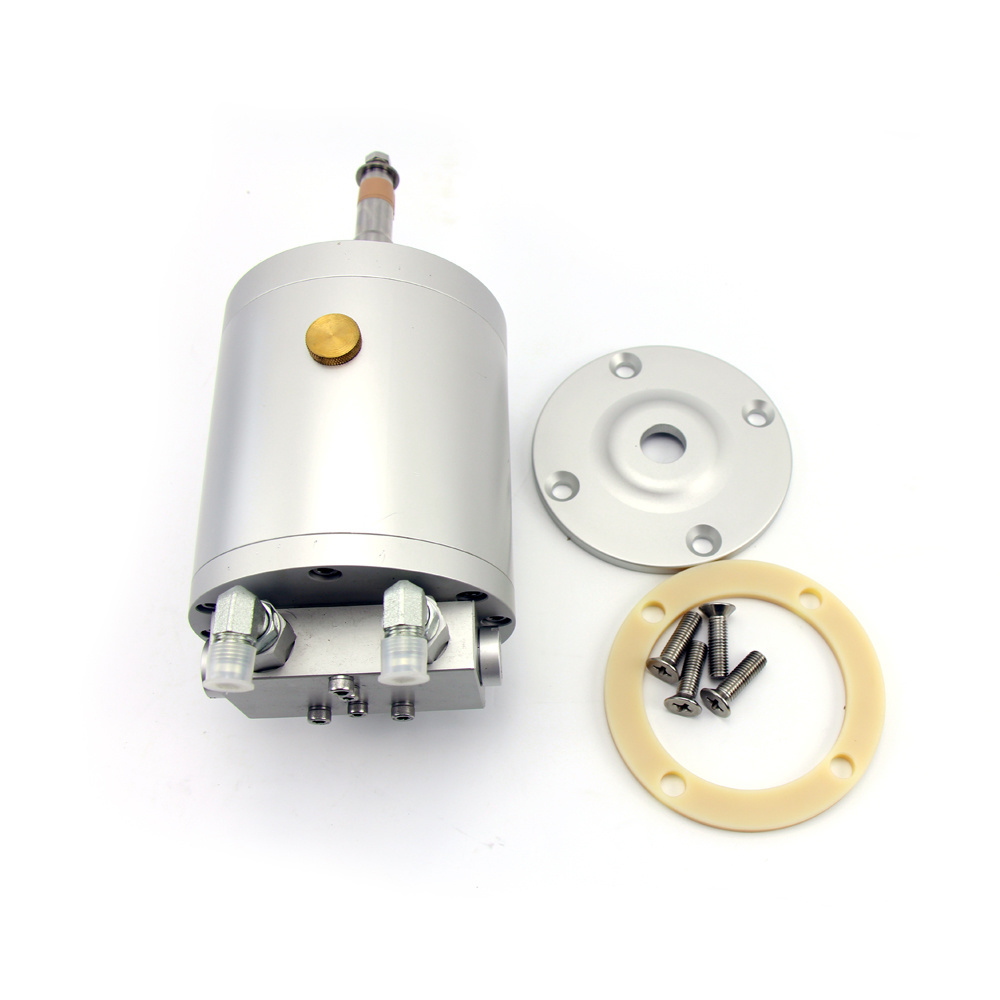

Step 2: Install the Hydraulic Helm Unit

Follow these steps to install the hydraulic helm:

• Position the new hydraulic helm in the same location as the old unit.


• Secure it using mounting bolts, ensuring it is tightly fastened.


• Connect the hydraulic lines to the helm according to the manufacturer’s instructions.

Step 3: Install the Hydraulic Cylinder

Next, install the hydraulic cylinder:

• Mount the cylinder to the transom or bracket as directed by the manual.


• Connect it to the steering linkage, ensuring all connections are secure and free from leaks.

Step 4: Connect Hydraulic Lines

Carefully route the hydraulic lines between the helm and the cylinder:

• Ensure there are no kinks or sharp bends in the lines.


• Make sure all connections are tight to prevent fluid leaks.

Step 5: Fill the Hydraulic System

Now it's time to fill the system with hydraulic fluid:

• Open the reservoir cap and fill it with the recommended hydraulic fluid.


• Check for any leaks as you fill and top off as necessary.

Step 6: Bleed the System

To remove any trapped air in the system, follow these steps:

• Turn the steering wheel from end to end several times, allowing fluid to circulate.


• Check the fluid level in the reservoir and add more if necessary.

Step 7: Test the System

Before taking your boat out on the water, it's crucial to perform a test:

• Check that the steering operates smoothly and without resistance.


• Ensure all components are securely fastened and free of leaks.

Common Challenges and Solutions

Upgrading to hydraulic steering can present some challenges. Here are common issues and practical solutions:

• Leaks in Hydraulic Lines: If you notice fluid leaks, check all connections and fittings to ensure they are tight and properly sealed.


• Steering Resistance: If steering feels stiff, check to ensure the system is bled properly and that there are no obstructions in the hydraulic lines.


• Fluid Contamination: Keep an eye on the hydraulic fluid quality; contamination can lead to system failure. Replace fluid as needed.

Maintenance Tips for Hydraulic Steering Systems

To ensure your hydraulic steering system operates smoothly over time, adhere to these maintenance tips:

• Regular Inspections: Routinely check for leaks, loose fittings, and fluid levels.


• Fluid Changes: Change the hydraulic fluid according to the manufacturer’s recommendations, typically every few years.


• Keep Components Clean: Maintain cleanliness around the steering system to prevent dirt and debris from entering fluid lines.


• Inspect for Wear: Look for signs of wear on hoses and seals, replacing them as needed to avoid failures.

Final Thoughts on Boat Upgrades

Upgrading your old boat with marine stern drive hydraulic steering is an investment that pays off in enhanced control, stability, and enjoyment. By following the steps laid out in this guide, you can ensure a successful installation and reap the benefits of improved performance on the water. Remember to conduct regular maintenance to keep your hydraulic steering system in optimal condition.

FAQs About Hydraulic Steering Systems

1. What is the lifespan of a hydraulic steering system?

The lifespan can vary, but with proper maintenance, a hydraulic steering system can last many years, often exceeding 10 years.

2. Can I install a hydraulic steering system myself?

Yes, many boat owners can successfully install a hydraulic steering system themselves with the right tools and guidance.

3. How often should I check the hydraulic fluid level?

It is advisable to check the fluid level before every boating trip to ensure optimal performance and safety.

4. What should I do if my steering feels loose?

If your steering feels loose, inspect the connections and hydraulic lines for wear or damage, and tighten or replace parts as necessary.

5. Are hydraulic steering systems safe?

Yes, hydraulic steering systems are designed with safety in mind. They offer reliable control and are generally more forgiving in adverse conditions compared to mechanical systems.
